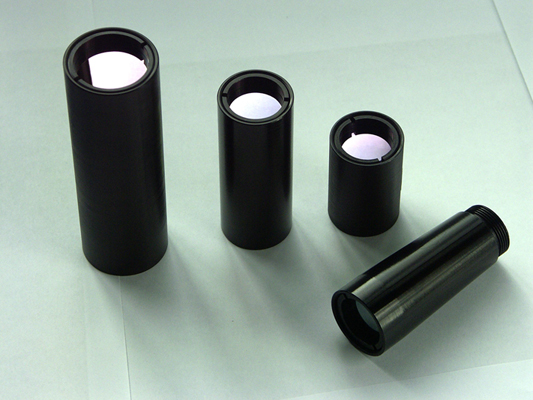

Laser Beam Expanders
2018-02-09 16:29
• Product Name: Laser Beam Expanders
• Two or more lens;
• Expanded laser beam waist radius;
• Compression beam divergence Angle;
• More wavelengths, Magnification more choice;
• For the working wave band antireflection，overall transmittance >97%;
• Aluminum alloy tube, Elox Schwarzand Sandblasting surface treatment.
| Wavelength （nm） | Enlargement factor | Exit pupil D (mm) |
Total Length L (mm) |
Connector | Type |
| 1064 | 3 | 30 | 77 | M22×0.75 | SL-LBE-1064M3 |
| 1064 | 4 | 30 | 77 | M22×0.75 | SL-LBE-1064M4 |
| 1064 | 5 | 30 | 77 | M22×0.75 | SL-LBE-1064M5 |
| 1064 | 6 | 30 | 77 | M22×0.75 | SL-LBE-1064M6 |
| 1064 | 8 | 30 | 100 | M22×0.75 | SL-LBE-1064M8 |
| 633 | 3 | 30 | 77 | M22×0.75 | SL-LBE-633M3 |
| 633 | 4 | 30 | 77 | M22×0.75 | SL-LBE-633M4 |
| 633 | 5 | 30 | 77 | M22×0.75 | SL-LBE-633M5 |
| 633 | 6 | 30 | 77 | M22×0.75 | SL-LBE-633M6 |
| 633 | 8 | 45 | 100 | M22×0.75 | SL-LBE-633M8 |
| 532 | 3 | 30 | 77 | M22×0.75 | SL-LBE-532M3 |
| 532 | 4 | 30 | 77 | M22×0.75 | SL-LBE-532M4 |
| 532 | 5 | 30 | 77 | M22×0.75 | SL-LBE-532M5 |
| 532 | 6 | 30 | 77 | M22×0.75 | SL-LBE-532M6 |
| 532 | 8 | 45 | 100 | M22×0.75 | SL-LBE-532M8 |
